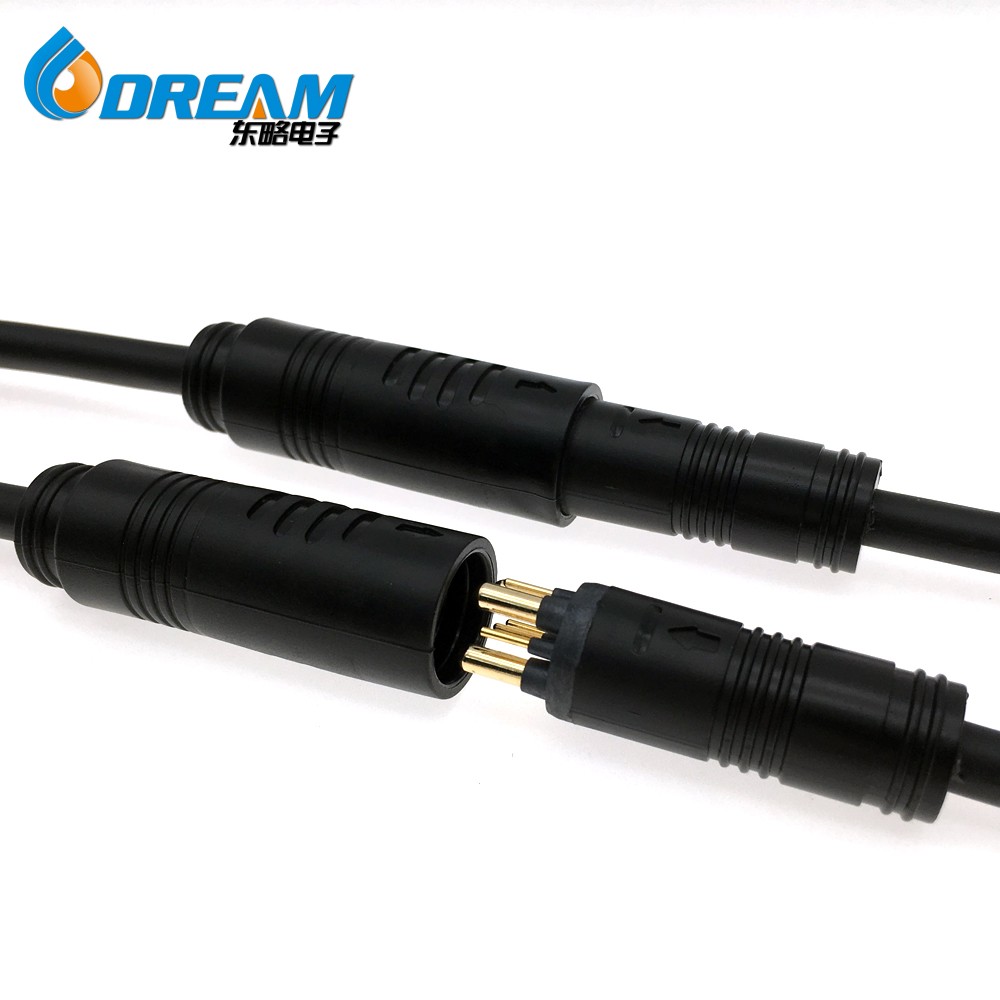

DR-B10 Factory High Current 250V 9 Pin 30A IP65 Ebike Connector Male Female Circular Connector Electric Motor Connector

Mechanical PropertyContact Numbers3Pin+6PinMale/Female Pin Diameter3*φ3.0mm+6*φ1.0mmOver-Mold MaterialPVC, TPUInsulator MaterialPA66Wire Gague24AWG----14AWGCable Rangeφ5.0---φ7.0IP RatingIP66Temperatu

Product Modle： DR-B10（Video shoing is DR-B06）

Click to Consult More Details

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Mechanical Property
Contact Numbers	3Pin+6Pin
Male/Female Pin Diameter	3φ3.0mm+6φ1.0mm
Over-Mold Material	PVC, TPU
Insulator Material	PA66
Wire Gague	24AWG----14AWG
Cable Range	φ5.0---φ7.0
IP Rating	IP66
Temperature Environment	PVC:0~80℃; TPU: -40℃~+125℃
Mechanical Life	1000
Rated Current	15A+2A or 30A+3A(32.5+60.2MM2-TEFLON)
Rated Voltage	250V
Test Voltage	1000V
Contact Resistance	10MΩ
Insulation Resistance	200MΩ

waterproof connector

Back to list

DR-B10 Factory High Current 250V 9 Pin 30A IP65 Ebike Connector Male Female Circular Connector Electric Motor Connector
