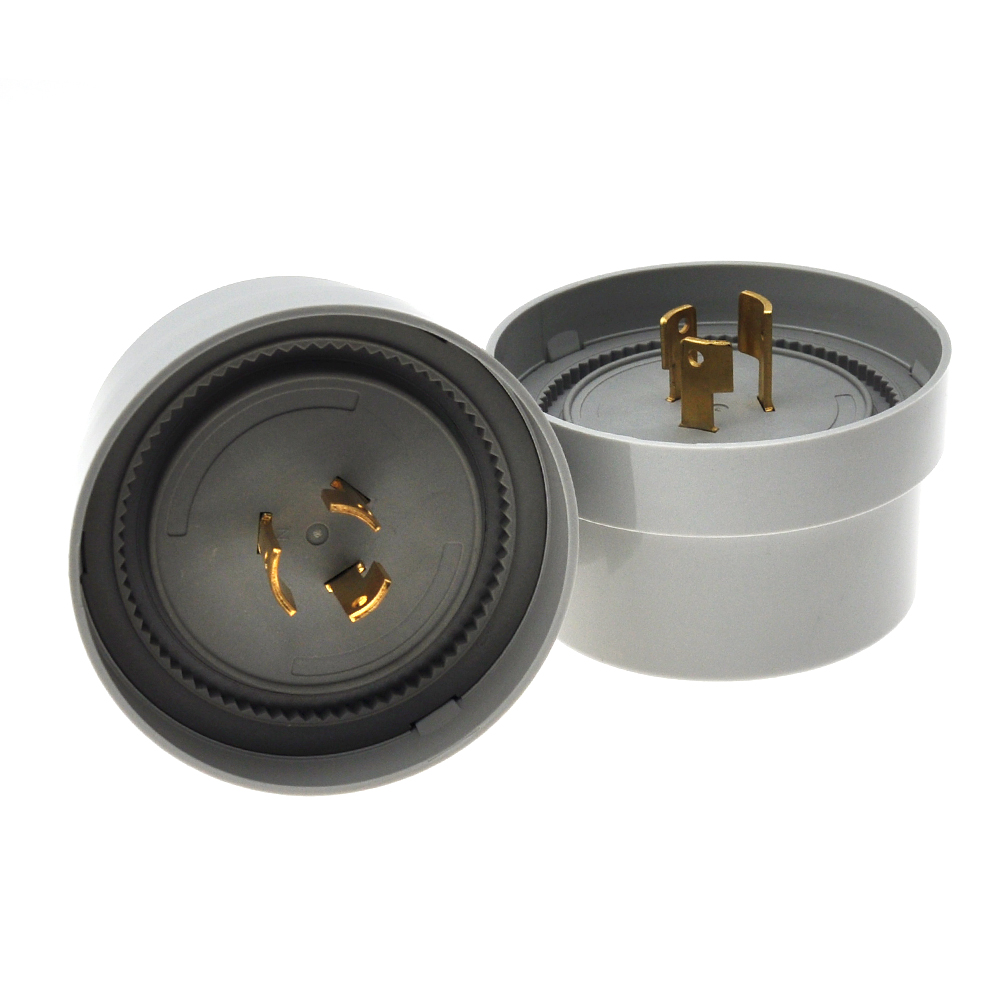

ANSI C136.10 Waterproof IP65 IP 66 Photoelectric Photocontrol NEMA Shorting Cap IP66 Photocell Shorting CAP
All contacts are pre-installed into the receptacle housing , and pre-crimped with 30CM lead wire , with 14AWG standard wire used on three-line voltage AC circuits and 18AWG wire used in four-way signal dimming control . Ambient temperature of the application is -40 to 70 degrees , suitable for outdoor lamps which require different temperature. There are 4 dimming contacts in the receptacle assembly.

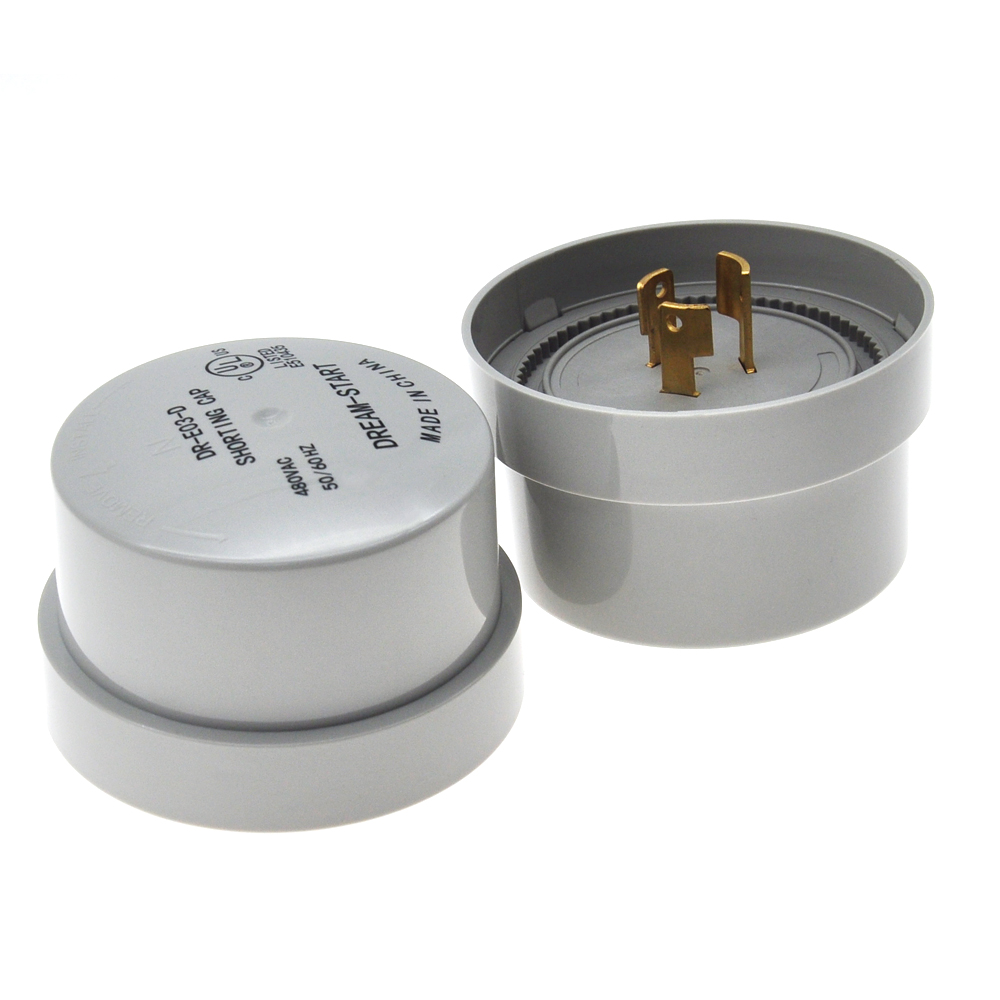

DR-E03(Shorting Cover) Parameters
Rated Voltage	110V~480V AC
Rated Frequency	50/60Hz
Load Current	16A
Ambient Temp	-40℃~105℃

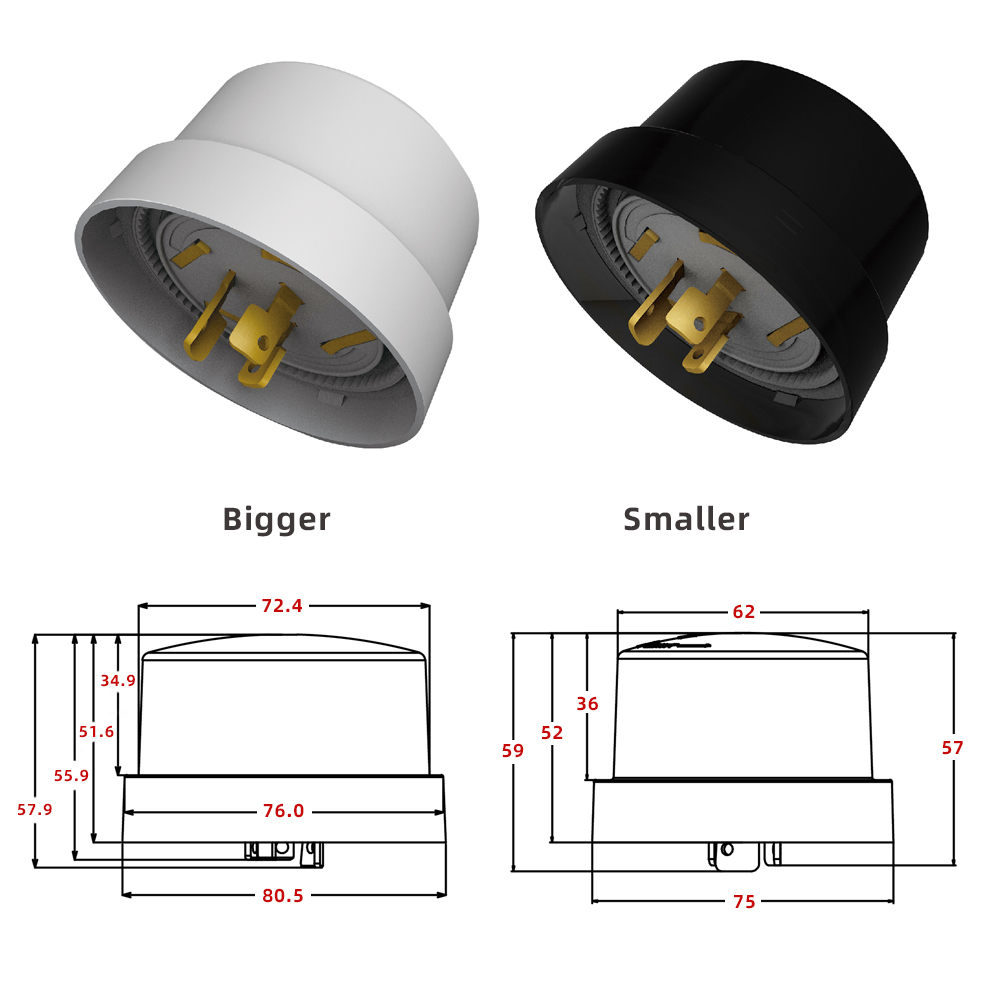

Size	φ80.5mm * φ51.6mm(Height)
Lead Length	300mm or Customer Request(AWG#14)
Shell Design	It Conforms to American National Standard ANSI C136.41-2013
Safety Certification	UL&CUL(E510435,Vol 1)
Lif Span	Quality Assurance for 3 Years

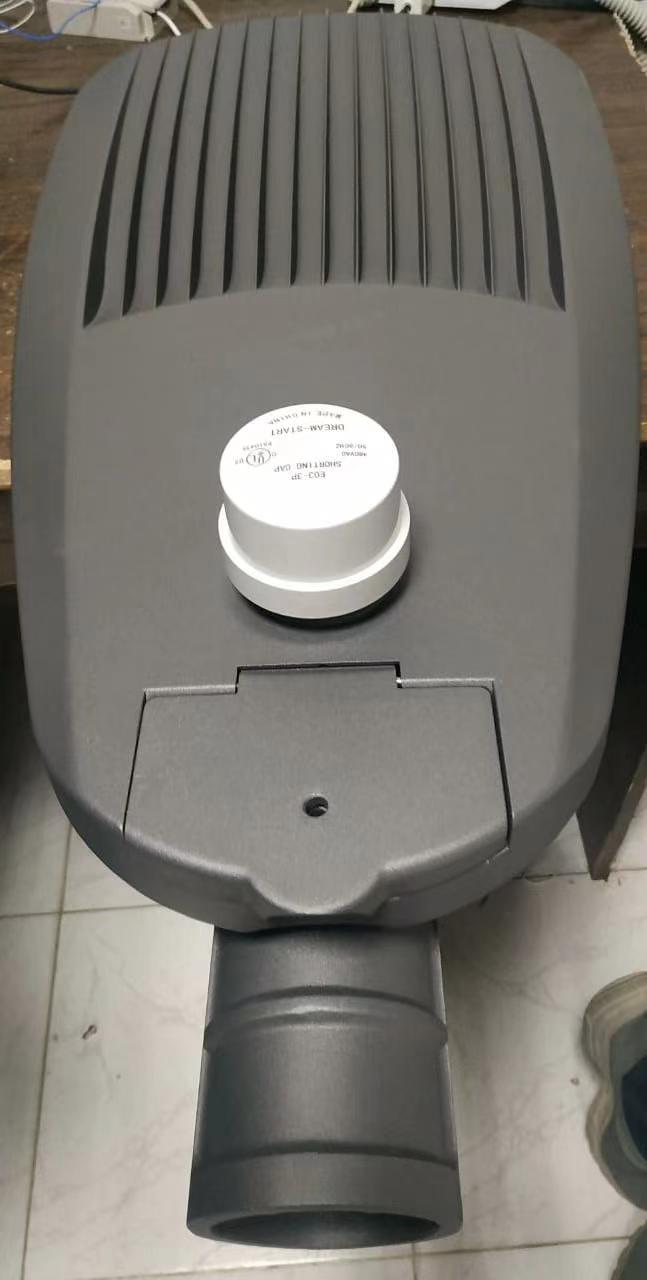

Applications	Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City, Smart Street Light, 5G

waterproof connector
