ANSIC 136.41 NEMA 7Pin Dimming Receptacle For Smart Street Lighting Twist Lock Photocontrol Ansi c136.41 7 Pin Receptacle

Ambient temperature of the application is -40 + 105 °C, suitable for the outdoor lamps which require different temperature. There are 4 dinming contacts in the receptacle assembly.

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

ANSIC 136.41 NEMA 7Pin Dimming Receptacle For Smart Street Lighting Twist Lock Photocontrol Ansi c136.41 7 Pin Receptacle

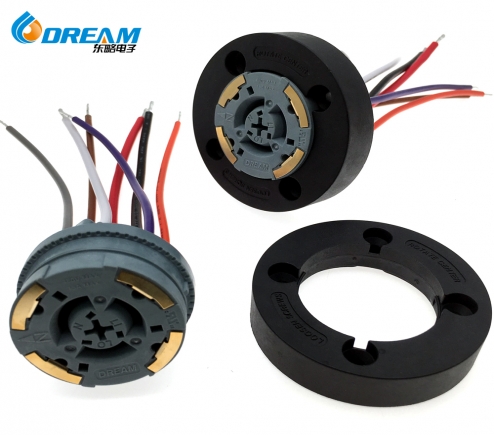

The instruction covers the application requirements of an ANSI C136.41-2013 dimming receptacles used for road and area lighting. All contacts are pre-installed into the receptacle housing, and pre-crimped with 30CM lead wire, with 14AWG stranded wire used on three-line voltage AC circuits and 18AWG wire used in four-way signal dimming control. Ambient temperature of the application is -40 + 105 °C, suitable for the outdoor lamps which require different temperature. There are 4 dinming contacts in the receptacle assembly.

DR-E02(NEMA) Parameters
Rated Voltage	110V~480V AC
Rated Frequency	50/60Hz
Load Current	16A
Ambient Temp	-40℃~105℃
Size	φ66mm * φ38.2mm(Cutting Hole)
Lead Length	300mm or Customer Request(AWG#14)
Shell Design	It Conforms to American National Standard ANSI C136.41-2013
Safety Certification	UL&CUL(E510435,Vol 1)
Lif Span	Quality Assurance for 3 Years
Applications	Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City, Smart Street Light, 5G

waterproof connector

ANSIC 136.41 NEMA 7Pin Dimming Receptacle For Smart Street Lighting Twist Lock Photocontrol Ansi c136.41 7 Pin Receptacle
