7Pin 5Pin Nema Connector Socket ANSI C136.41 Photocell Receptacle IP66 IP65 Twist Lock Photocontrol Nema Socket NEMA 7 PIN PHOTOCONTROL

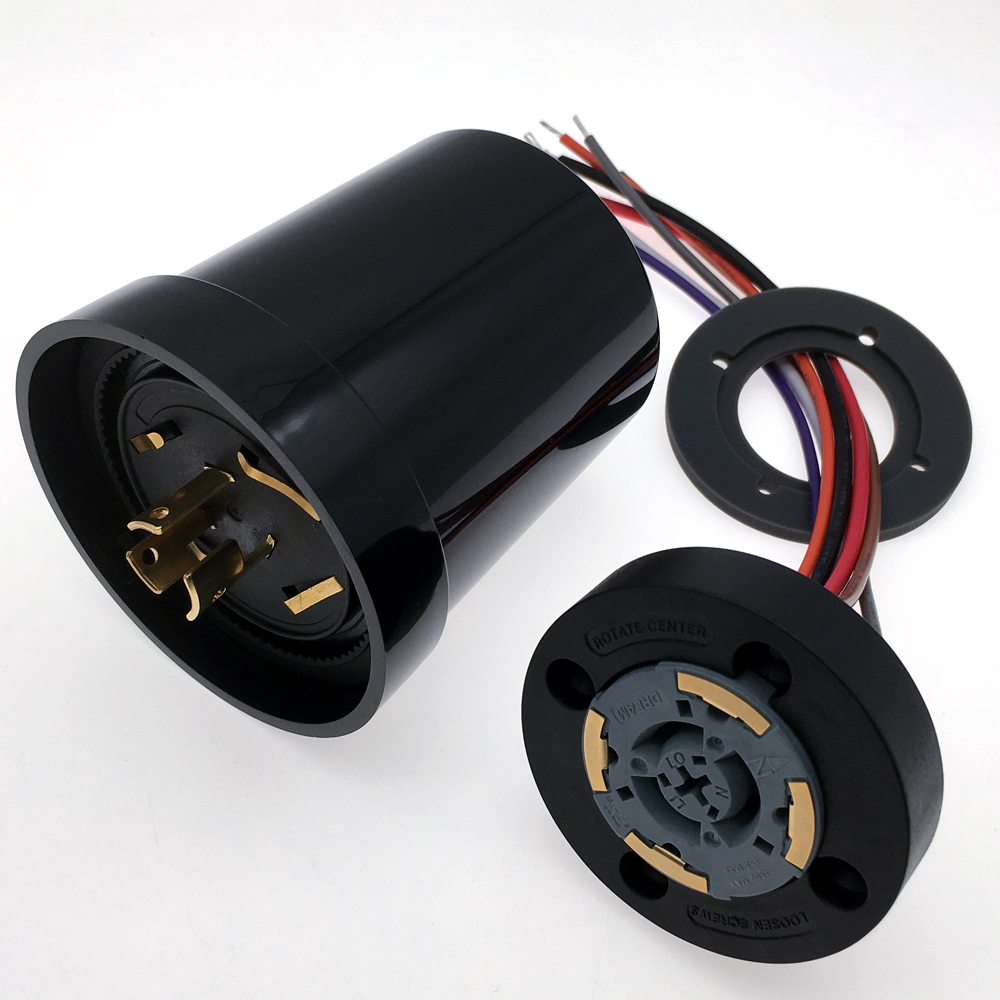

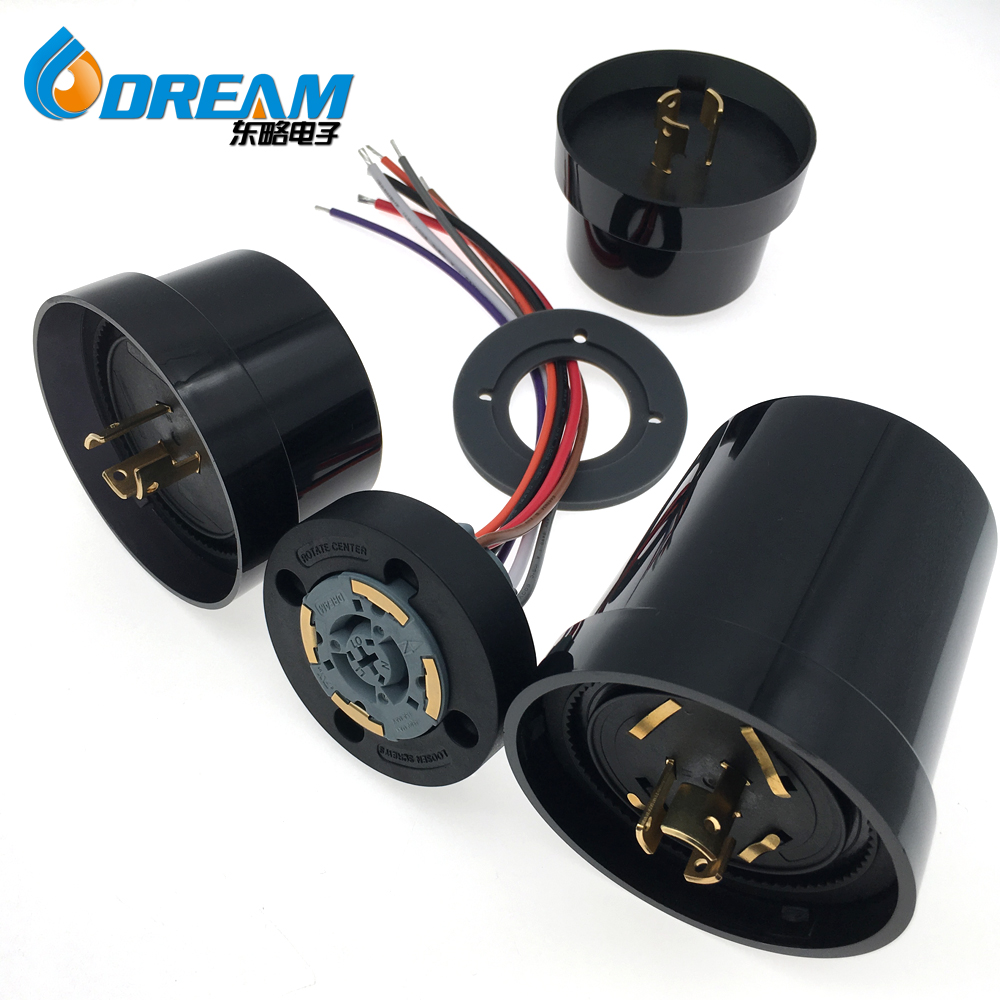

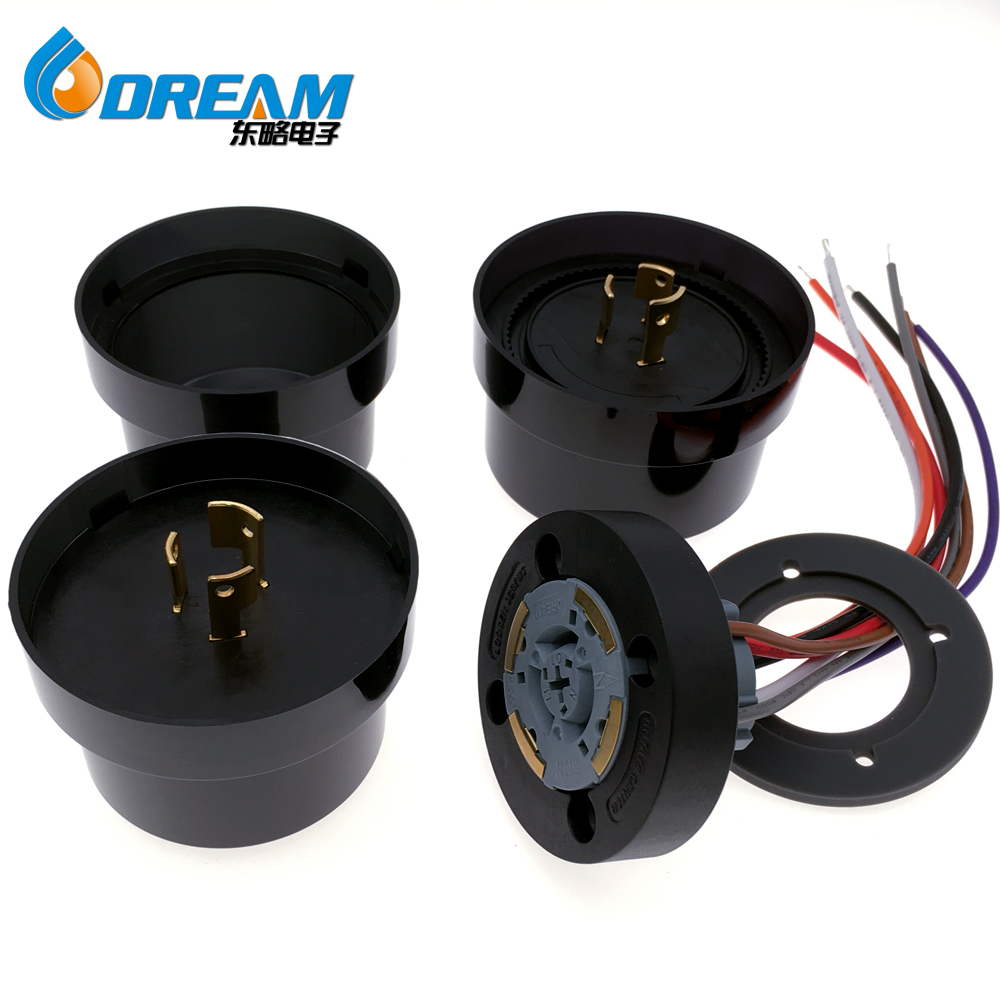

All contacts are pre-installed into the receptacle housing , and pre-crimped with 30CM lead wire , with 14AWG standard wire used on three-line voltage AC circuits and 18AWG wire used in four-way signal dimming control . Ambient temperature of the application is -40 to 70 degrees , suitable for outdoor lamps which require different temperature. There are 4 dimming contacts in the receptacle assembly.

DR-E03 (Photocontrol) Parameters
Sensor Type	Photodiode
Rated Voltage	110V~240V AC
Wide Input Voltage Range	100V~277Vac
Working Mode	<10~20 lux="" on="">30~60Lux / OFF,Time-delay: 2 Seconds
Load Current	15A (220Vac)
Ambient Temp	-40℃~105℃
Size	φ80.5mm * φ51.6mm(Height)
Case Material	UV resistant PC
Shell Design	It Conforms to American National Standard ANSI C136.41-2013
Safety Certification	UL&CUL(E510435,Vol 1)
Life Span	Quality Assurance for 3 Years
Applications	Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighti

waterproof connector
