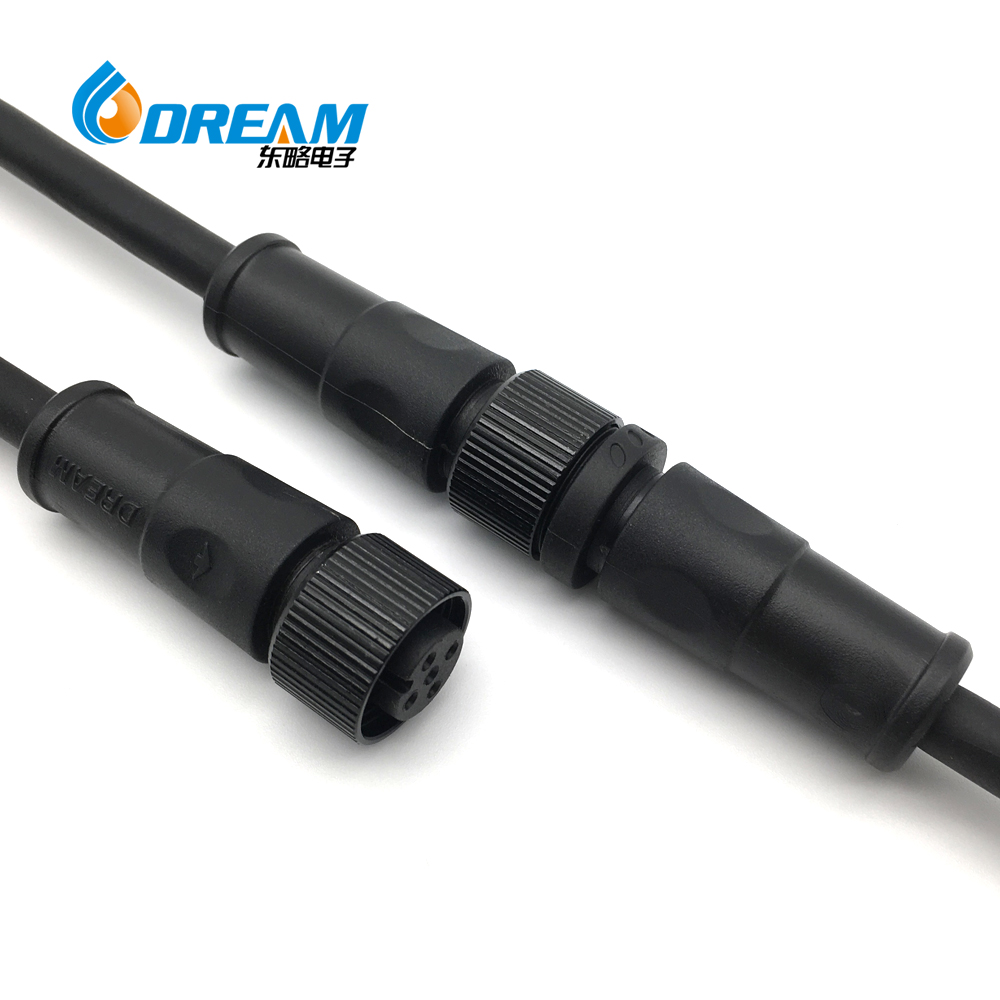

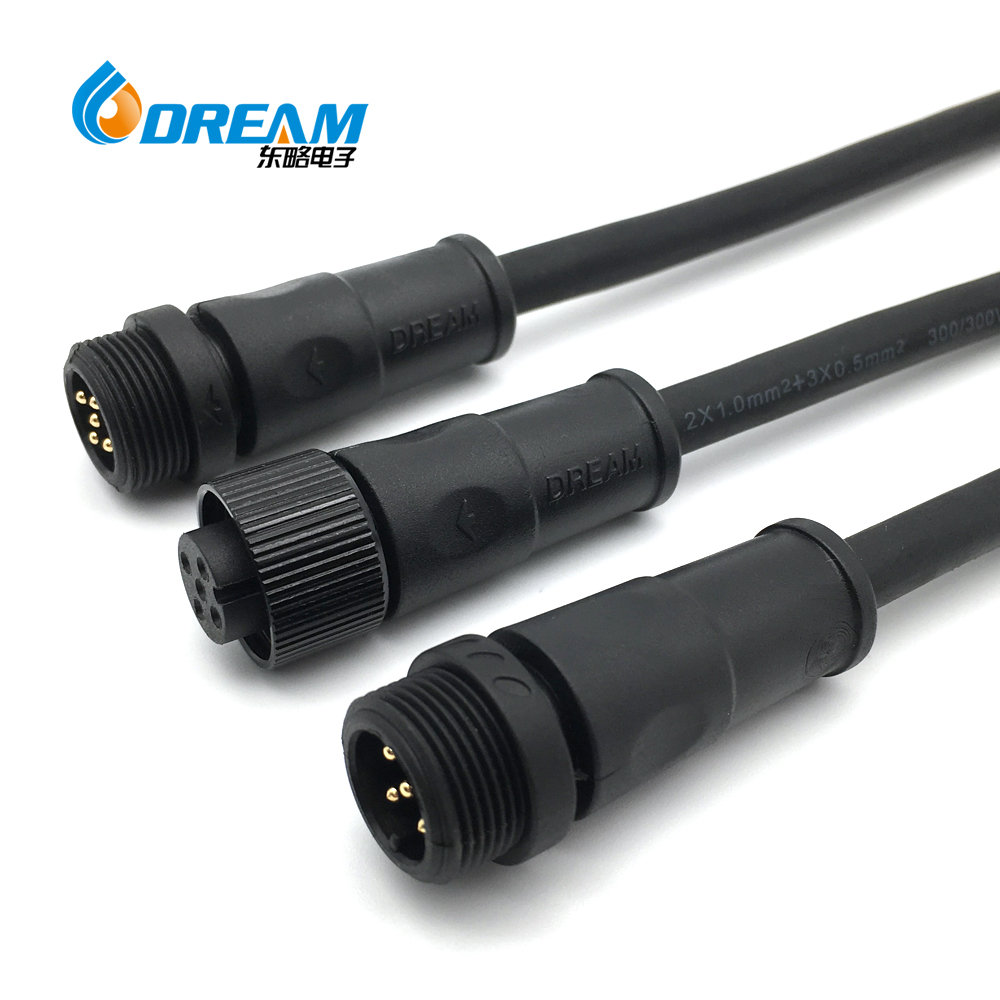

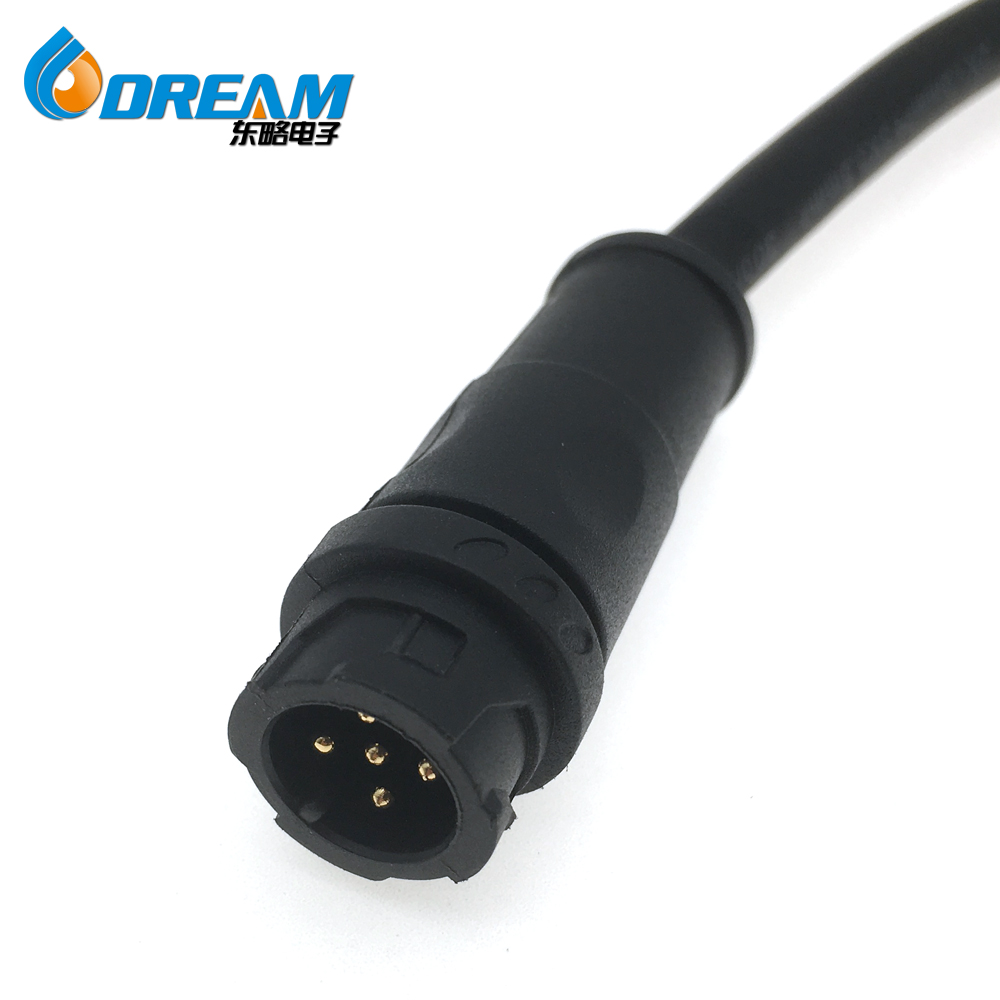

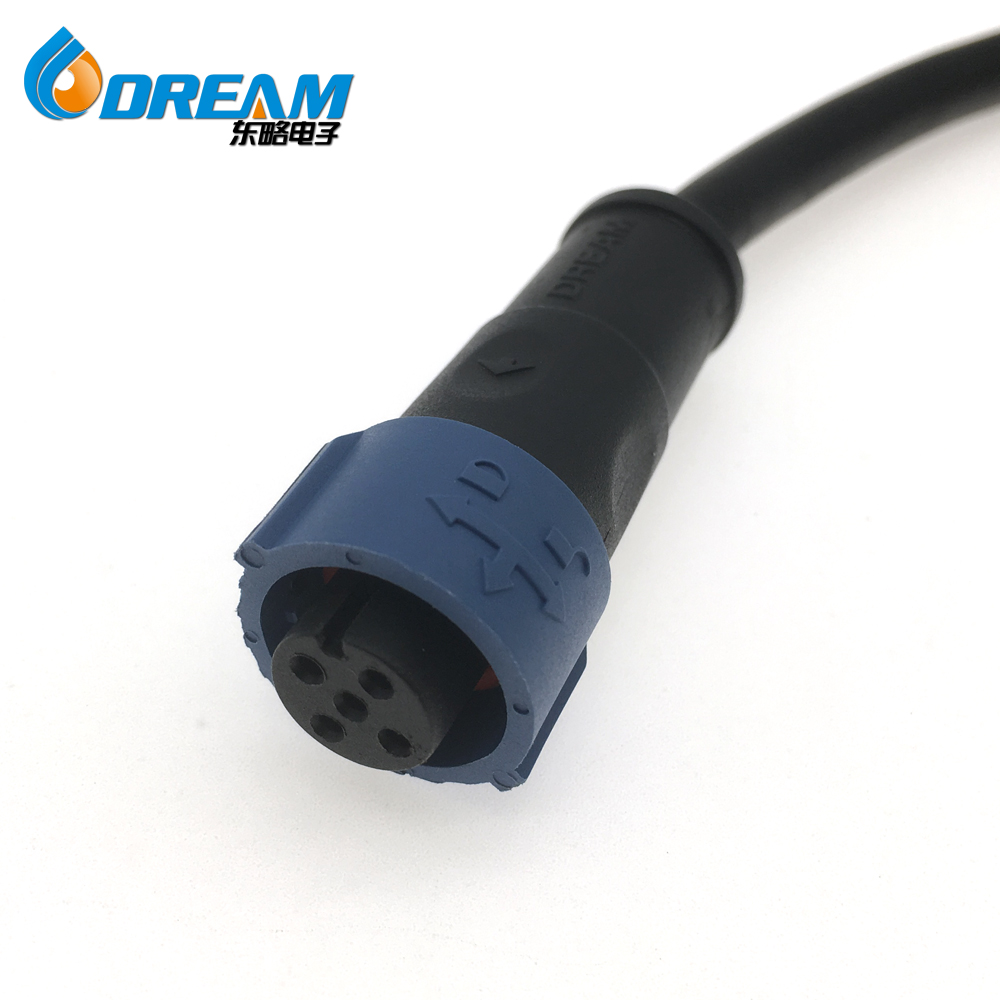

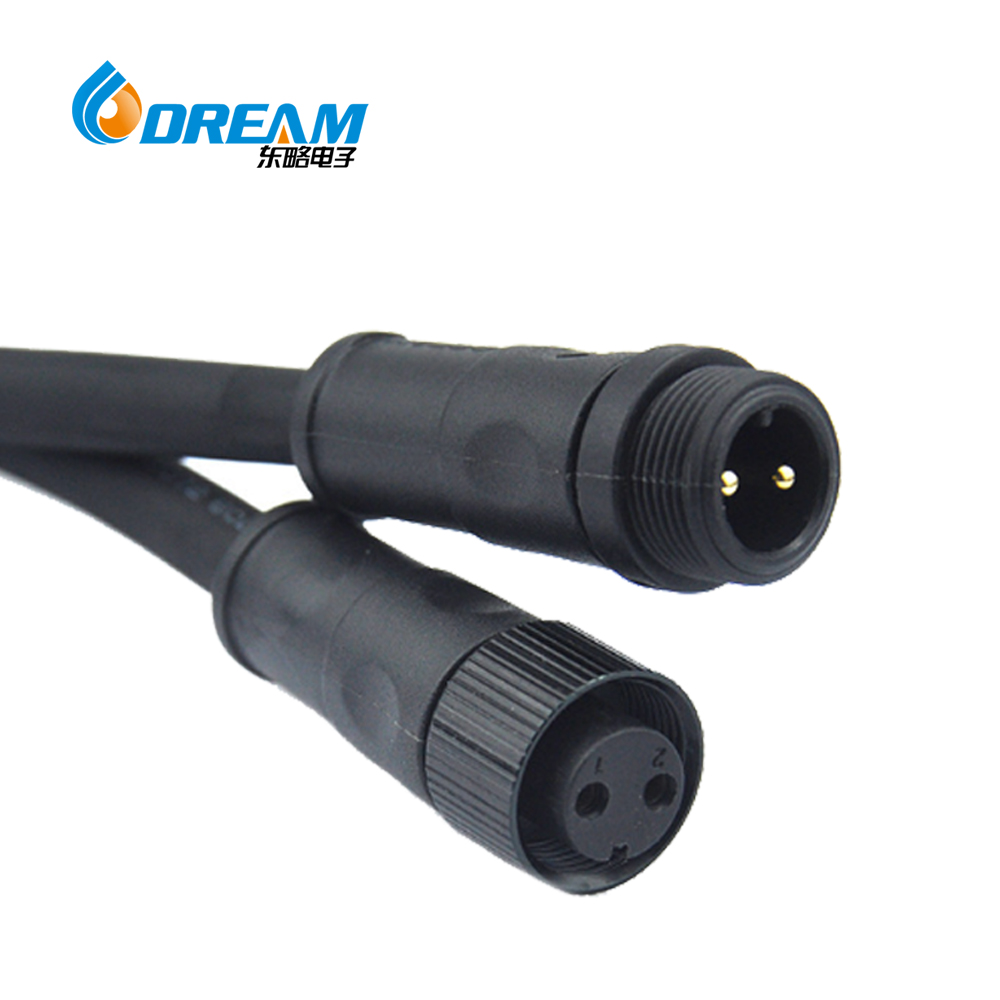

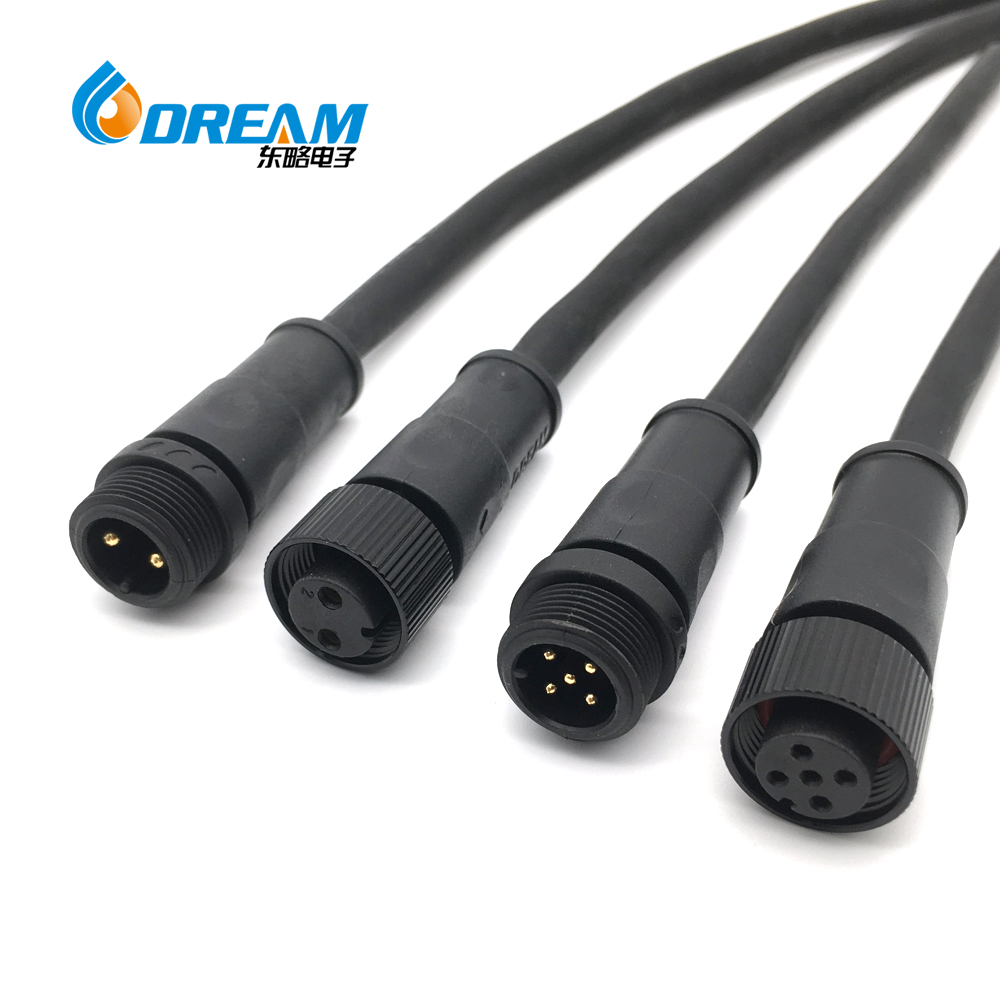

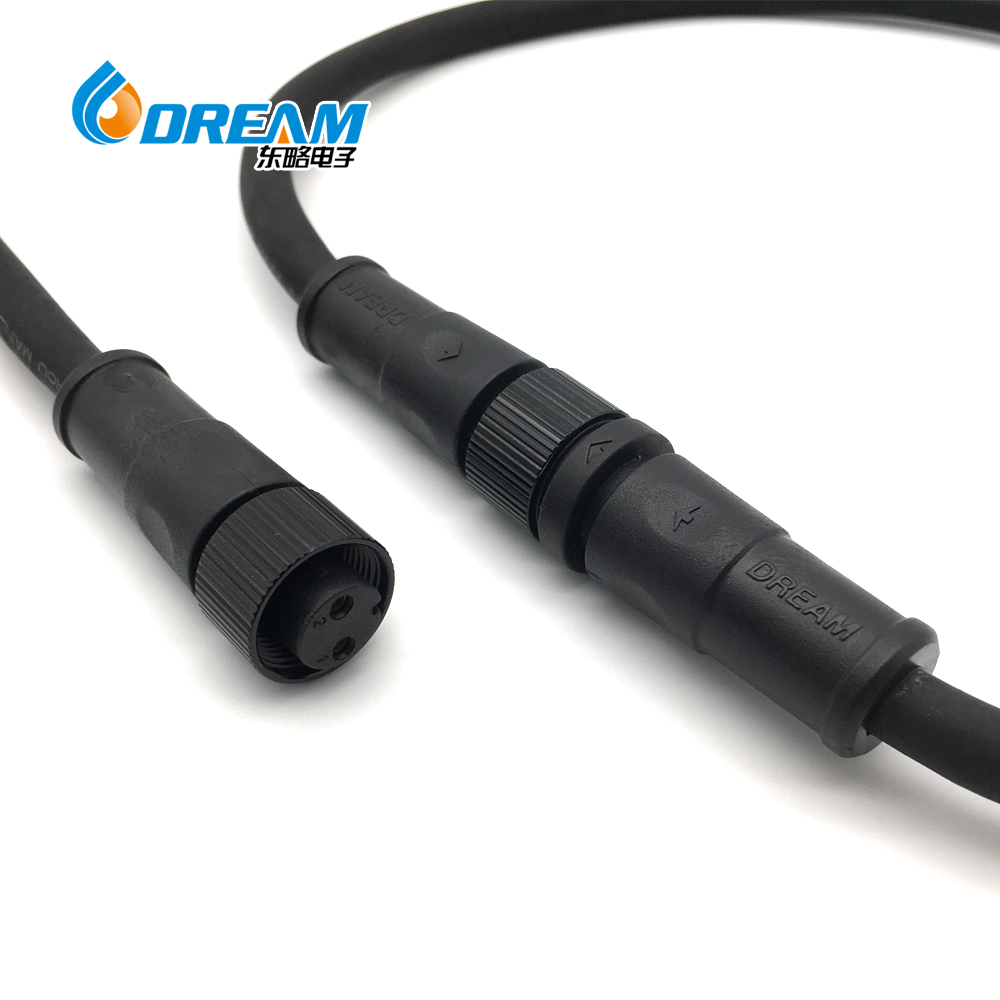

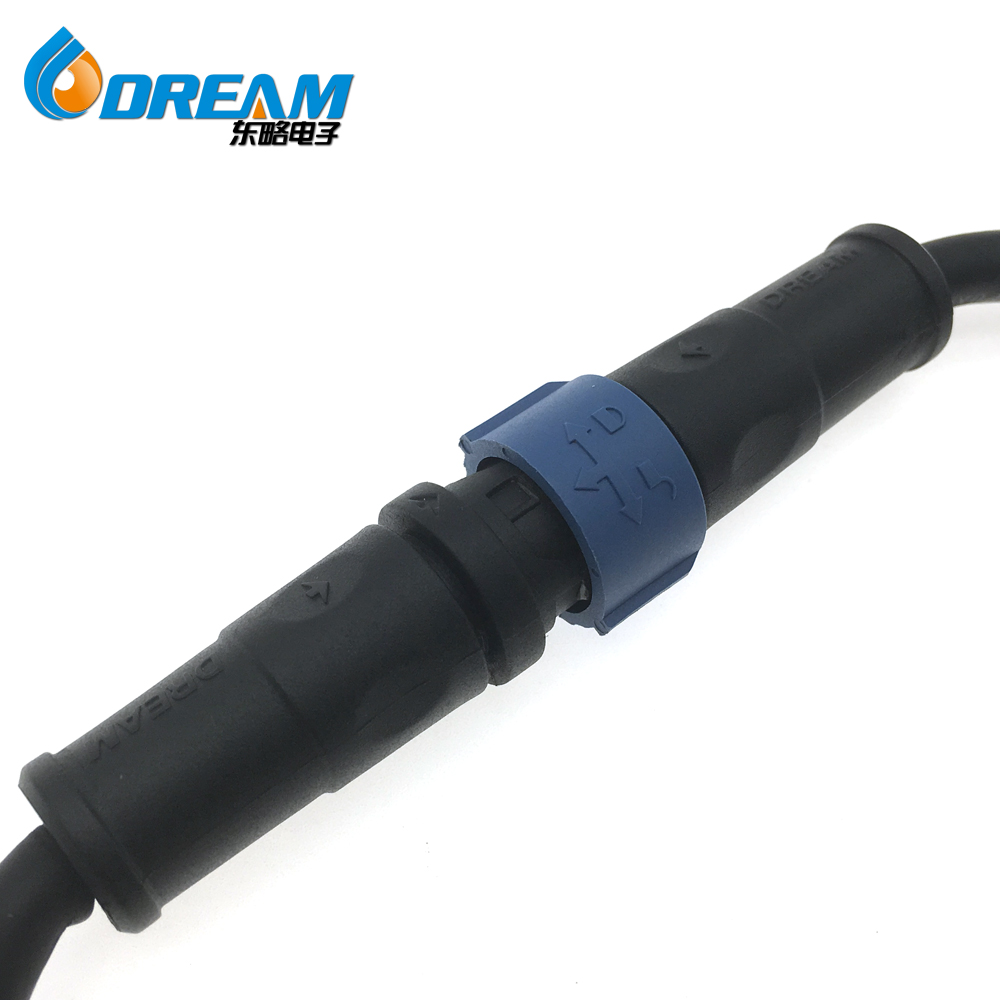

Factory Direct Sales IP67 Waterproof Male to Female Cable Connector with Cable Molded

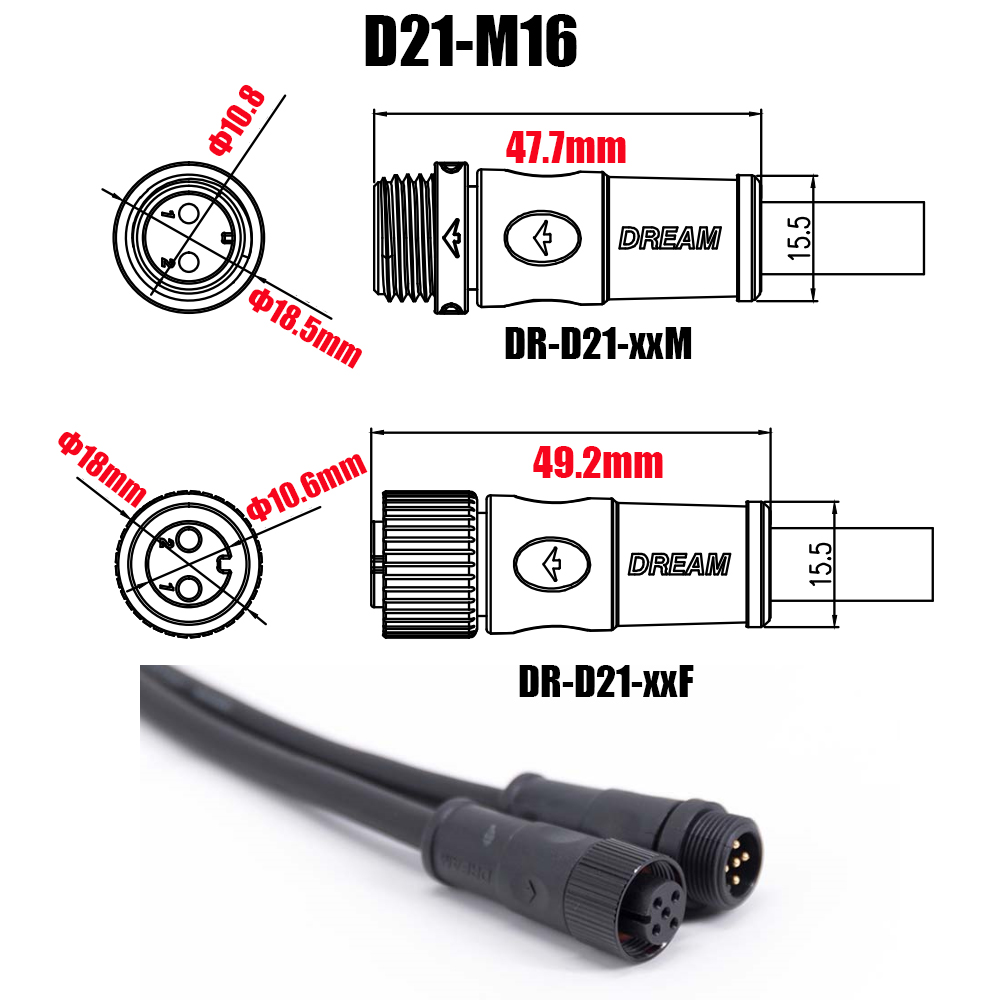

Product Modle： DR-D21-M16

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Factory Direct Sales IP67 Waterproof Male to Female Cable Connector with Cable Molded
Threaded butt assembly, simple to use and easy to install .
Nylon material, stable electrical performance, high strength pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
The pin is made of gold-plated parts, which ensures the product's continuity and stability, and is safe and reliable.
Small volume, appearance, high performance plug socket assembly is very convenient, robust explosion-proof housing, waterproof.
Widely used in: LED light bars, LED spotlighting, LED wall washer landscape lighting, outdoor spotlights, bridge tunnel lights, street lights, field exploration equipment, outdoor displays, etc.

Pins Number	Rated Current	Rated Voltage	Contact Resistance	Contact Resistance	IP-Code	Cable Specifications	Cable Range
2	15A	250V AC	10mΩ	200MΩ	IP67	≤2.5mm2	0-11mm
3	10A	250V AC	10mΩ	200MΩ	IP67	≤2.0mm2	0-11mm
4	10A	250V AC	10mΩ	200MΩ	IP67	≤1.5mm2	0-11mm
5	10A	250V AC	10mΩ	200MΩ	IP67	≤1.0mm2	0-11mm

Factory Direct Sales IP67 Waterproof Male to Female Cable Connector with Cable Molded
