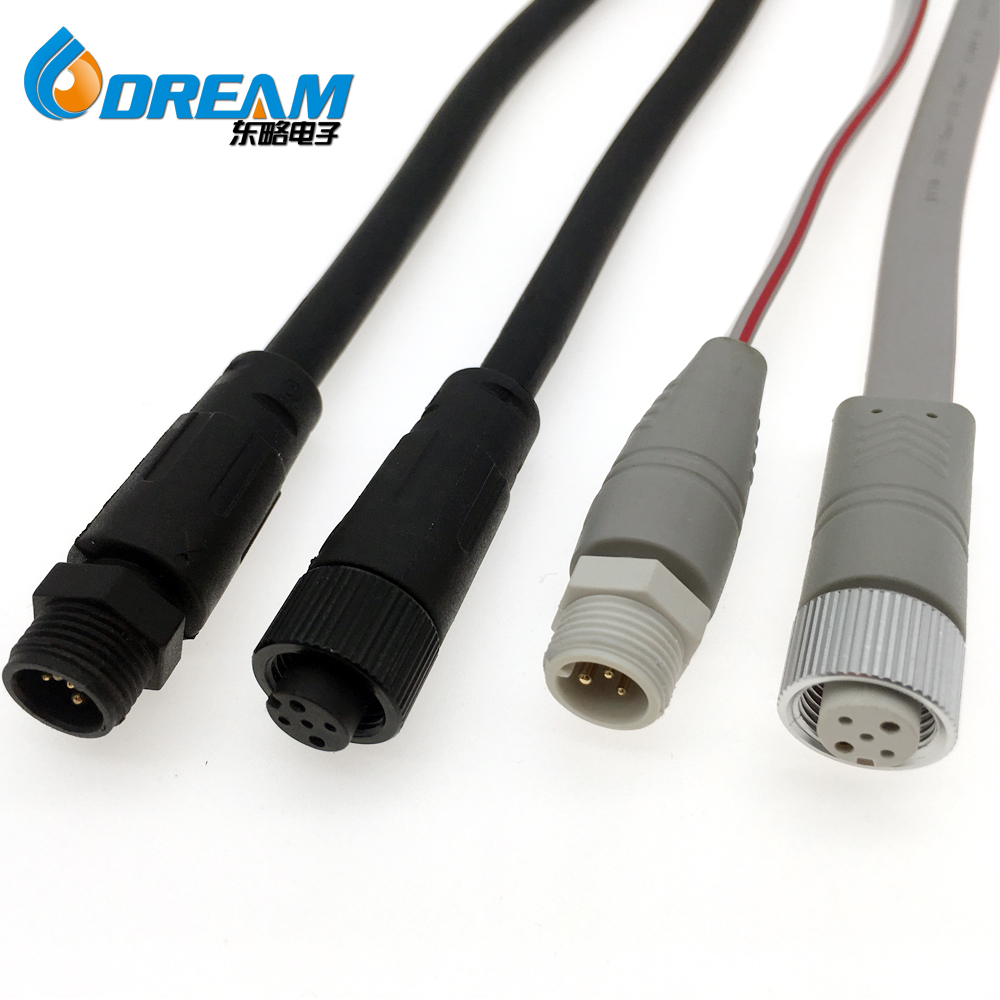

Male Female IP67 2pin 3pin 4pin 5pin 6pin 8pin Led Lighting Electrical Cable Panel Mount Waterproof Washer Connector

Product Modle： DR-D18-M12

Contact Me Now

Email：sales@cnszdst.com

Can not see? Click to change verification code

Male Female IP67 2pin 3pin 4pin 5pin 6pin 8pin Led Lighting Electrical Cable Panel Mount Waterproof Washer Connector
M12 metal nut type docking assembly, more exquisite and more durable;
Integrating current and signal transmission in one of the multi-functional comprehensive waterproof plug;
Metal nut locking makes a better tensile performance and better waterproof performance;
The male and female pins of gold-plated ensure the conducting performance's stability, safe and reliable;
Mainly used for upscale lighting accessories lines and other upscale products.

Pins Number	Rated Current	Rated Voltage	Contact Resistance	Contact Resistance	IP-Code	Cable Specifications	Cable Range
2	8A	110V AC	10mΩ	200MΩ	IP67	≤1.0mm2	0-7.5mm
3	8A	110V AC	10mΩ	200MΩ	IP67	≤1.0mm2	0-7.5mm
4	5A	80V AC	10mΩ	200MΩ	IP67	≤0.75mm2	0-7.5mm
5	5A	80V AC	10mΩ	200MΩ	IP67	≤0.5mm2	0-7.5mm
6	4A	60V AC	10mΩ	200MΩ	IP67	≤0.5mm2	0-7.5mm

waterproof connector
