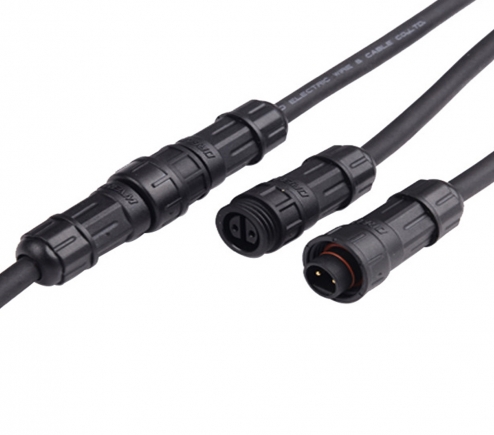

IP68 Plastic M16 Mini Screw Type 4 Pin Male Female Power Connector 4 Pin Waterproof Connector

IP68 Plastic M16 Mini Screw Type 4 Pin Male Female Power Connector 4 Pin Waterproof Connector
Quick lock and screw threaded docking assembly, simple to use and convenient installation;
Integrating current and signal transmission in one of the multifunctional integrated circular connector;
The material of products in nylon fiber grealy improves product durability and safety;
The pins with gold-plated ensure the conducting performance's stability and security;
Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then assemble and weld it according to the demand.
Mainly used for outdoor display screens and other upscale products.

Male Size	Φ19*47.3mm
Female Size	Φ19*47.5mm
Contact Cores	3pin
Male Pin Diameter	Φ1.5mm
Male Pin Material	Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material	PA66
Insulator Material	PA66+30% fibre
Wire Specifications	28AWG---14AWG
Wire Diameter	Φ3.5-Φ7.2

waterproof connector

机械性能(Mechanical Property)
产品尺寸(Size)	公头 (Male)	母头 (Female)	成品 (F1n1shed Product)
产品尺寸(Size)	φ19*47.3mm	φ19*47.5mm
接触对数(Contact Cores)	2Pin~4Pin	5Pin~6Pin	2+4Pin	2+6 Pin
公针直径(Male Pin Diameter)	φ1.5mm	φ1.0mm	2φ1.5+4φ0.8mm	φ10.+4*φ0.6mm
公针材质(Male P in Material)	铜／铜合金 (镀金/镀镍） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
母针材质(Male Pin Material)	铜／铜合金（镀金/镀镍） Copper/Copper Alloy (Gold Plating/ Nickel Plating)
外模材质(Over-Mold Material)	PA66
绝缘体材质(Insulator Material)	PA66+30%纤
适用线缆规格(Wire Spec1f1cat1ons)	28AWG---14AWG
用线缆外径(Wire Diameter)	φ3.5 ~ φ7.2
防护等级(Protective Level)	IP68
耐温环境(Tempreture Env1roment)	-40℃ ~ 125 ℃
插拨次数(Plug/Unplug Durab山ty)	1000
电气性能(Electrical Property)
额定电流(Rated Current)	10A	4.0A	10A+2.5A	4A+2A
额定电压(Rated Voltage)	250V	250V	60V	60V
测试电压(Test Voltage)	1000V	1000V	500V	500V
接触电阻(Contact Resistance)	10 MΩ	10 MΩ	10 MΩ	10 MΩ
绝缘电咀(Insulation Resistance)	200 MΩ	200 MΩ	200 MΩ	200 MΩ
